RODX中間接(jie)軸型(xing)鼓形齒式聯軸器

RODX聯軸器是ROD系列(lie)聯軸器接(jie)軸加(jia)長型式，采用中間浮動(dong)接(jie)軸設(she)計(ji)，適用于(yu)加(jia)大傳動(dong)距離的場合。

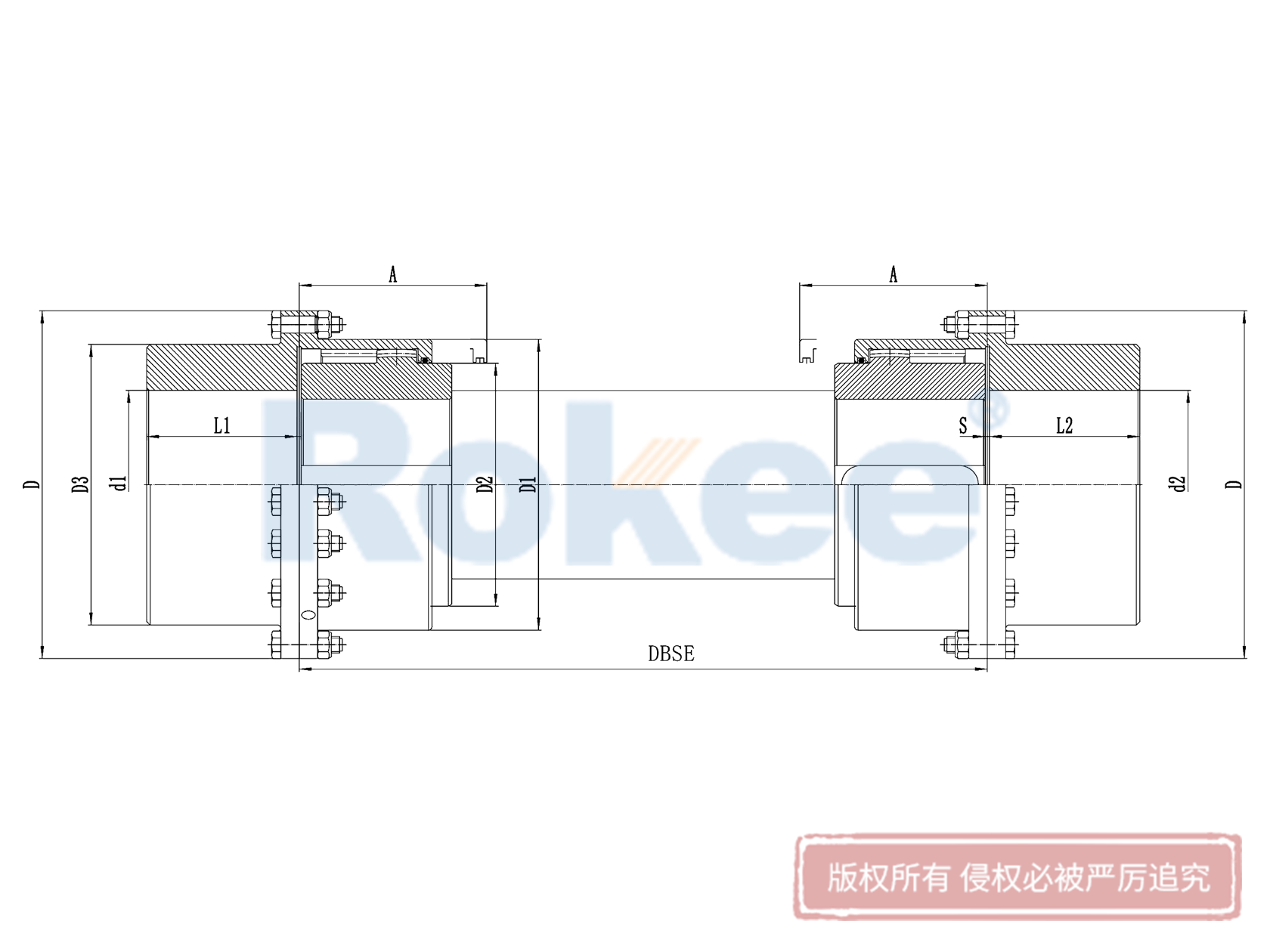

RODX中間接軸型鼓形齒式聯軸器

  • A為(wei)更換(huan)密(mi)封(feng)或者維修時內齒套需(xu)要(yao)移動的(de)基本距離。

  • 注意(yi)DBSE是安裝軸兩(liang)端的(de)距(ju)離，不是內齒法蘭面的(de)距(ju)離，設計或訂貨時需明確注明。

  • L1和L2的數值為推(tui)薦標準尺寸，意味(wei)著(zhu)更快捷的供貨。

  • 當實際需要(yao)不同(tong)時(shi)(shi)，設(she)計選(xuan)型(xing)或訂(ding)貨(huo)時(shi)(shi)須予以特殊確(que)定。

規格額定扭矩扭矩(max)轉速(max)基本尺寸重量接軸重量（每100mm）轉動慣量每100mm接軸轉動慣量潤滑脂用量
NmNm1/minDD1D2D3d1-d2L1-L2SAKgKgJ(Kgm2)J(Kgm2)Kg
RODX0119003800600011082688214-5643353242.20.0180.00090.03
RODX02300059404700140104 8510517-7050365382.80.0470.00190.06
RODX036200122004400170127 10613020-9062380624.50.1170.00380.09
RODX04930018400400021015513215526-105765951046.50.290.0090.12
RODX051540031000392023518215017830-1209051101388.60.550.0120.3
RODX0625300496003850270210 17521035-142105612520213.51.130.0250.4
RODX073860076400330031024820624870-168120614028916.62.220.0560.6
RODX084880096500290033827523527585-190135815537022.33.420.0840.8
RODX0975300147800265037830625230895-216150818048026.26.10.1221.4
RODX10930001814002300400330274335105-2301758205592328.940.1722.5
RODX111661003272002100445365 305360120-252190821873036.812.250.2783.0
RODX122260004470001800508425355415130-2902201025210485425.040.5224.5
RODX132420004800001550540465368430140-2922501630019856233.050.6223.0
RODX142750005430001420580500405465160-35027016320246068.550.50.9023.6
RODX153520006960001300648546450510170-3802901634030708578.21.3354.8
RODX164400008800001200685582486550200-41032520370370095.2107.51.7115.0
RODX1756100011220001100760642520600220-450245204004255105.8150.22.1599.0
RODX1872600014520001050800684555640245-480265204205003125.32013.039.8
RODX198580001716000990840720590690275-520400204505998152.5291.24.16211.5
RODX2011000002200000930920760640742300-560410254907078173.6414.85.81311.5
RODX2113200002640000870990844704800325-600430255208600203.9588.88.33514.5
RODX22176000035200008201040895744865350-6504702555010003241.5809.411.34523.0
RODX23198000039600007701142970810905375-6805003060011942264.51091.513.6123.0
RODX242090000418000073011851015835950400-7105203063013162284.8132716.2230.0
RODX2523100004620000680123010608701035425-7705403065015720322.61768.319.9236.0
RODX2628600005720000650128011309281080450-8105703068017220376.52252.528.0238.0
RODX27418000083600005801390124010201200475-90060030725209604353315.636.5546.0
RODX285962000119240005401550137511301355500-9006703580028990562.25988.460.4257.0
RODX297975000159500004801700156012801500525-10007403589033506695.67586.695.8875.0
RODX309515000190300004001860168514301650575-12008003598036460832.59981.3132.5115.0

  • 更高的聯軸器轉速運行，請聯系(xi)Rokee技術部門

  • 軸孔鍵槽按照DIN6885標(biao)準執(zhi)行，若有其他要求，請特別(bie)注(zhu)明

  • A值為(wei)調整(zheng)聯軸(zhou)器外齒軸(zhou)套或更(geng)換內齒密封(feng)圈所需間隙。

  • DBSE為主從動軸(zhou)端面間(jian)距離(li)而非外齒軸(zhou)套之間(jian)的距離(li)，由客(ke)戶根據機(ji)組尺(chi)寸(cun)鏈需要自行選取。

  • 更長的(de)外齒軸套或者(zhe)任何其他性(xing)能要求均可(ke)向Rokee技術部門另行定制。
